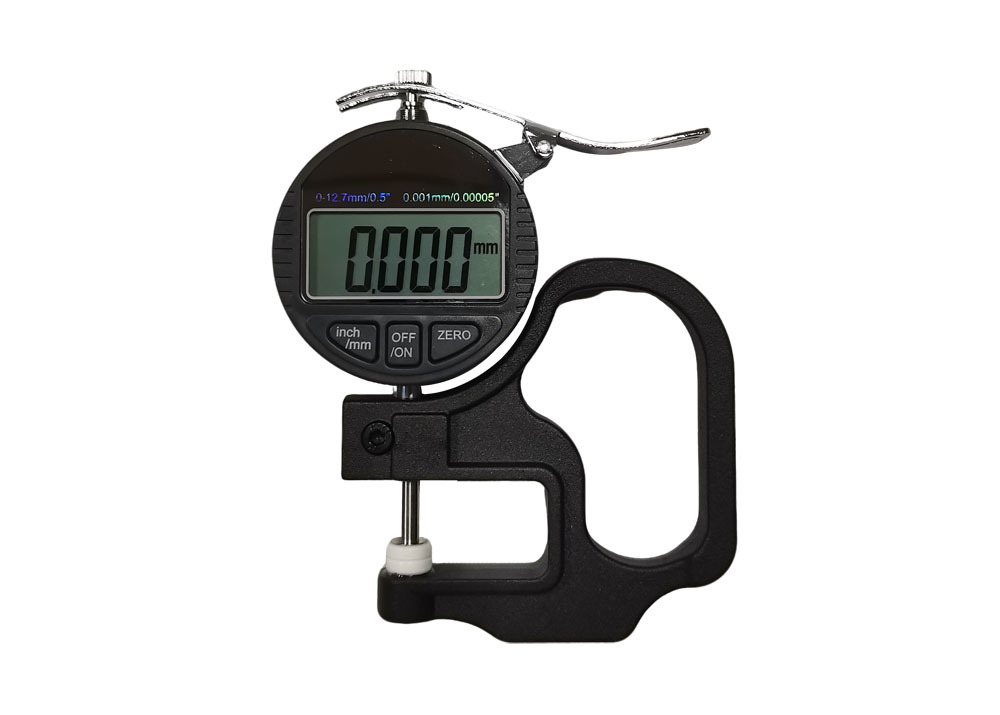

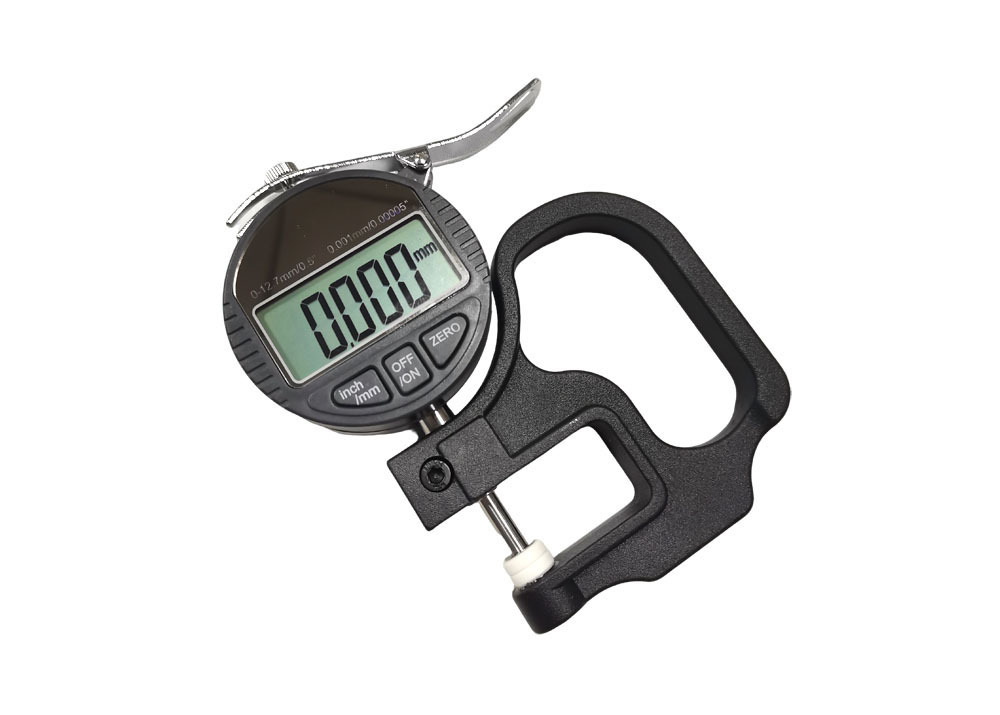

High quality 0-12.7mm/0-0.5″ Electronic Depth Thickness Gauge with 30mm Throat

High quality 0-12.7mm/0-0.5″ Electronic Depth Thickness Gauge with 30mm Throat

Description:
Our KM-422 series is high precision digital thickness gauge, provide 0.001mm/0.00005’’ resolution, supply measuring range
from 0-12.7mm/0-0.5’’ up to 0-50mm/0-2’’, the measuring depth are available from 26mm up to 500mm to meet different
measurement application, we also can customize measuring depth based on requirement.

The structural design of our digital thickness gauge is stable, and it is able to maintain high measurement accuracy
and stability under a wide range of environmental conditions.

Our digital thickness gauge usually has a large digital display to directly display the measurement results, and the metric
and inch systems can be converted to each other without manual reading, reducing human error and improving measurement efficiency.

The low-power design enables long-term operation without frequent battery replacement when using battery power.

Quick Detail:
1. Large LCD for easy-reading.
2. Zero-setting at any position.
3. Inch/Metric conversion.
4. ON/OFF: Power on and power off.
5. Quick and efficient measurement with their convenient grip handle.
6. Lifting lever for dial indicator.
7. With various types of measuring faces available for wide range of applications.
8. Steel or ceramic material measuring face are optional.
9. Measuring depth can be customized base on requirement.

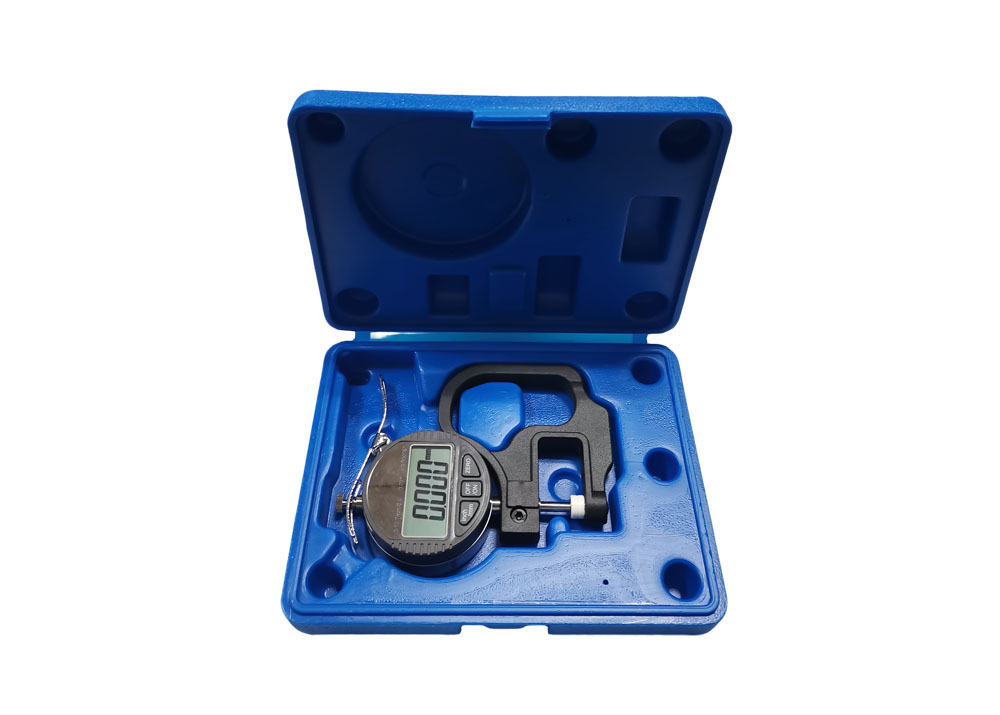

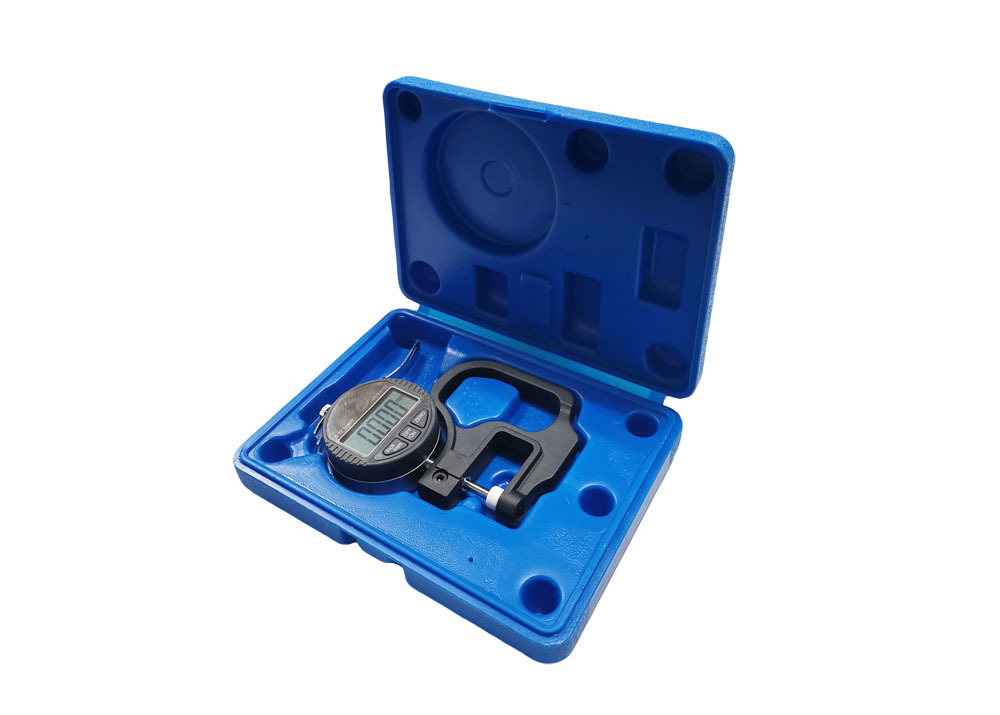

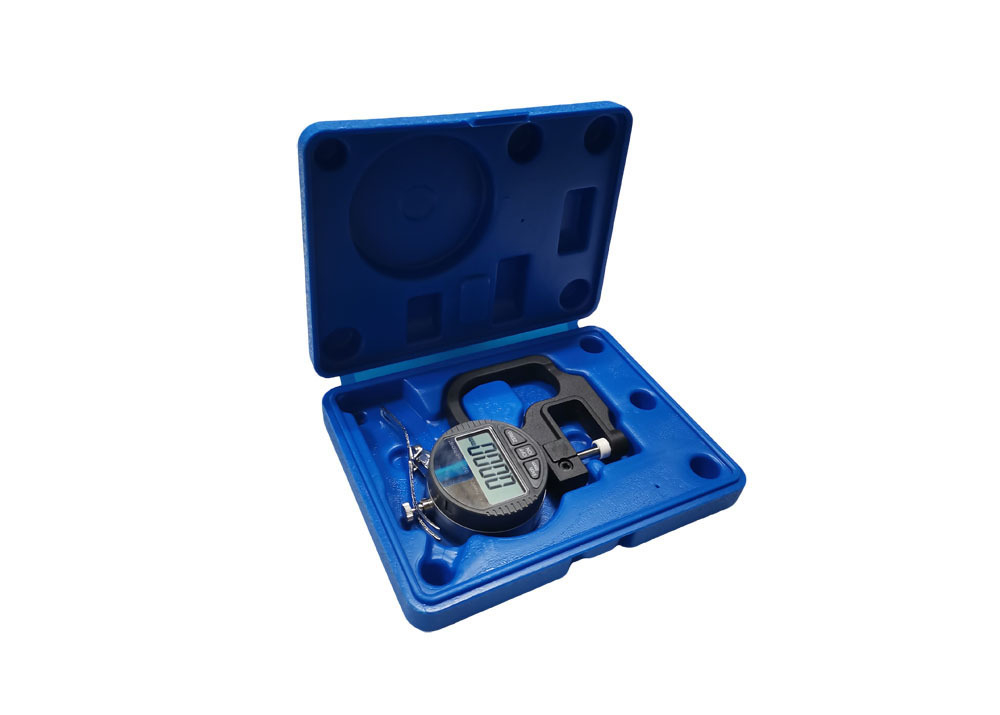

10. Supplied in fitted case.

Specification:


Applications:
1. Iron and steel industry: used to measure the thickness of metal sheets, such as ships, bridges and oil tanks, etc.
2. Chemical industry: used to measure the wall thickness of containers, pipelines and other equipment.
3. Manufacturing: It is used to measure the thickness of plastic products, paper, leather, rubber, fabric, glass and other materials.
4. Aerospace: It is used to measure the thickness of parts such as aircraft and engines.
5. Automotive industry: It is used to measure the thickness of automobile parts, such as body panels, brake discs, etc.

Precautions:
1. The digital thickness gauge is a precision measuring tool, which should be used to prevent impact and fall,
    so as not to lose accuracy.
2. It should be kept clean to avoid water and other liquid substances from penetrating into the thickness gauge
    so as not to affect the normal use.
3. When the data output port is not in use, do not remove the output port cover, and do not touch the output terminal
    arbitrarily with metal devices to avoid damage to the electronic circuit.
4. Do not apply voltage to any part of the thickness gauge, and do not use a pen to engrave, so as not to damage the electronic circuit.
5. When not in use for a long time, the battery should be removed.

FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.

2) What are the terms of trade?
We support FOB, CFR, CIF, EXW.

3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

4) Do we accept customization?
Yes, OEM is available.
